# Changelog¶

## v 3.0.0¶

Warning

Version 3.0 contains numerous breaking changes (hence the increment). Review the changelog before upgrading.

### General¶

• A new method, results_data has been added to most modules (excluding calibration and log analyzer). This is complementary to results. results_data will return a dataclass or dictionary, which includes pretty much everything in results as well as metadata (e.g. pylinac version). This dictionary will be useful for APIs and referencing certain information that will be more stable across versions 🤞. Thanks to @crcrewso for the suggestion.

• Nearly all major modules can now handle file objects and streams (Dynalogs cannot yet). These may be passed as would a disk file path.

with open("mystarshot.dcm", 'rb') as f:
star = Starshot(f)
...

• Enums have been added in numerous places to mostly replace string options. E.g. for picket fence instead of specifying “up-down” as the orientation literally, the user now has the option to pass an Enum:

from pylinac.picketfence import PicketFence, Orientation

pf = PicketFence(...)
pf.analyze(..., orientation=Orientation.UP_DOWN)  # specify the orientation via an Enum


The advantage here is two-fold: 1) introspection/autocompletion using your IDE vs remembering/looking up documentation, 2) easier to generate documentation as now we can point to a class with the options. Note however that string options are still available for backwards compatibility.

pf = PicketFence(...)
pf.analyze(..., orientation='Up-Down')  # specify the orientation via a string. Works the same as above


Assuming you’d like to use the string version instead of using enums all over, how do you know the options? Go to the auto-generated documentation of the enum! =) E.g. Orientation.

Note

Relying on your IDE is a good idea. A smart one can warn you of incompatible data types.

• The github repo has been “minified” by removing excess demo files and also removing the basic test files. These files are now cloud-hosted and downloaded as needed. This makes git clone significantly faster since the repo size has been reduced from ~1.6GB to ~60MB. Note that this does not affect the pip package since that package already had most of this excess data removed.

• Image inversion detection has changed slightly. Some images have proper tags such as rescale slope and intercept. If they do have the tags, they are applied and no inversion is applied. If they do not have the tags, an inversion is then applied. Previously, the tags were applied if they were there, and nothing if not and inversion was ALWAYS applied. This should result in better inversion defaults for images from different machines/platforms and fewer invert=True additions. See Images.

• A CONTRAST enum has been added that can be used for low-contrast analysis of planar images and CBCT images. See Contrast.

from pylinac.core.roi import Contrast

leeds = LeedsTOR(...)
leeds.analyze(..., low_contrast_method = Contrast.WEBER)
...

ct = CatPhan504(...)
ct.analyze(..., contrast_method = Contrast.MICHELSON)
...

• The algorithm for low contrast contrast constant detection has changed slightly. See Visibility. This means the # of detected low-contrast ROIs may change for cbct. You may pass in a contrast technique per above and also a visibility threshold. See the .analyze method of the respective class.

• The contrast-to-noise property of the LowContrastDiskROI now uses contrast/stdev, where contrast is defined/chosen per above.

• Several LowContrastDiskROI properties have been deprecated such as contrast_constant. Use visibility instead. The old properties still work but come with a deprecation warning and will be removed in a future release.

• #270 Pylinac had a memory leak that was apparent when running on a server. This was caused by old instances being held in memory from and incorrect usage of the lru_cache. This has been fixed.

• Documentation benchmarking several algorithms has been added. See the “Benchmarking the Algorithm” section for vmat, winston-lutz, and starshot modules. Picket fence will come soon.

Note

Besides the above notes and any module-specific steps, due to the modified method of loading images and inversion, other downstream modules may be affected. This means that some images that needed invert=True before may not need it, and some images that previously worked may need an invert=True. So generally, if the image fails when it passed with previous versions, try adding/removing forced inversion first. This should only be an issue for older images. Images generated on new linac platforms should be handled just fine.

### Dependencies¶

A new dependency has been added: cached_property.

### Field Analysis (previously Flatness/Symmetry)¶

Danger

This release introduced numerous breaking changes to this module. Existing code will break.

• Two classes are now offered: FieldAnalysis and DeviceFieldAnalysis.
• Many, many options were added to the analyze() method. See below and the documentation page for all the details.
• The flatsym module has been renamed to field_analysis to reflect the generalized nature of the module. Many thanks to Alan Chamberlain (@alanphys) for suggesting and doing the initial implementation for this. This also introduced some early support for NCS-33 , which gives guidance on FFF beams.
• From the above report, a “top” position as well as field slope values are calculated for FFF beams. See FFF fields.
• The new module can handle files from devices, specifically the SNC Profiler. See Loading Device Data.
• Extensibility was greatly enhanced. Users can now easily add their own custom analysis routines to the module. See Creating & Using Custom Protocols.

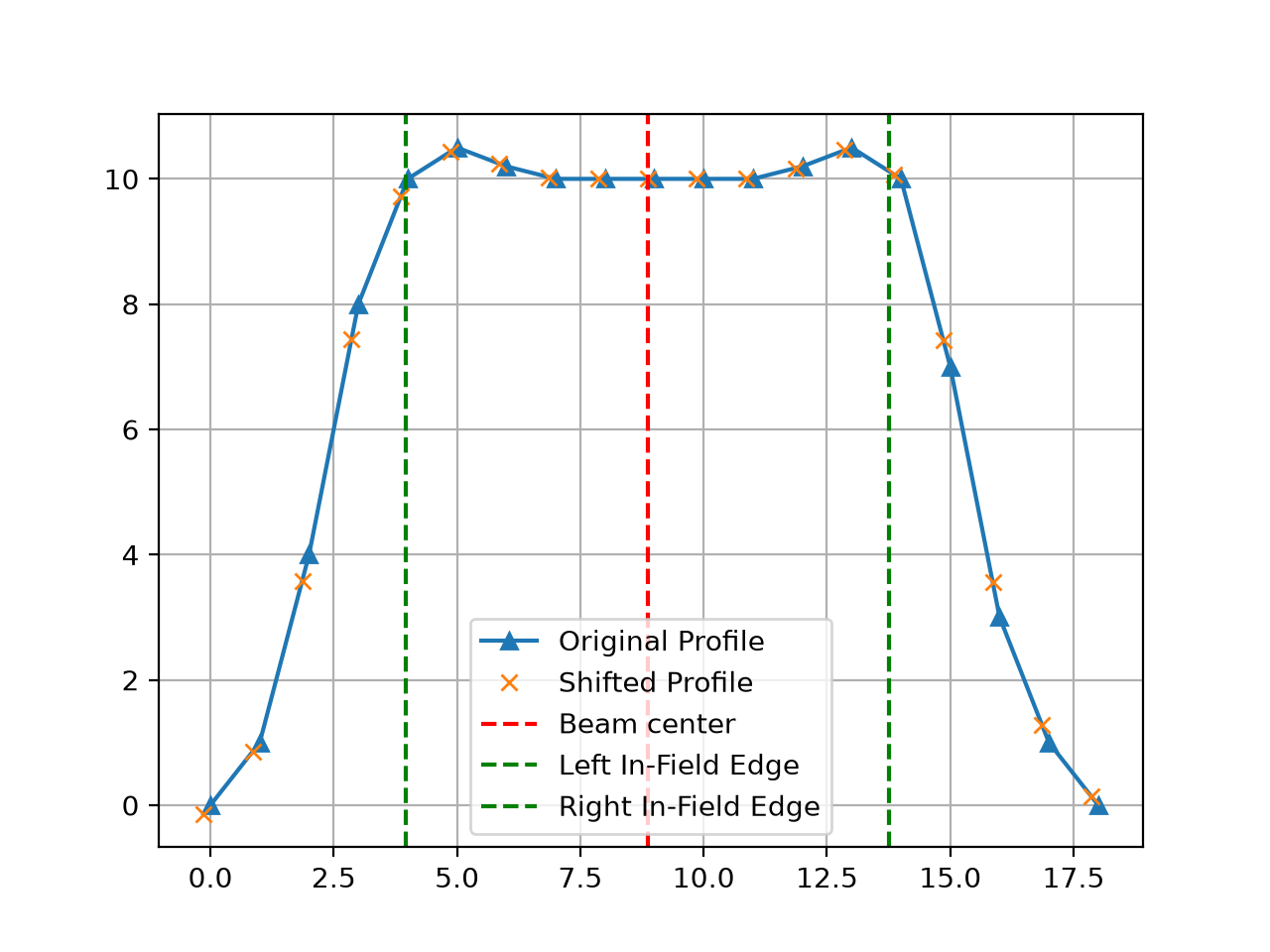

• New options for Centering, Normalization, Edge detection, and Interpolation were introduced. Each of these can be granularly controlled.

### VMAT¶

• Leveraging the new profile module, the field edge detection has been improved and can detect “wide-gap” or overlapping ROIs more robustly.

### Calibration¶

• #353 The bounds for most functions/methods have been converted to constants. This lets users override the default values should they wish it.

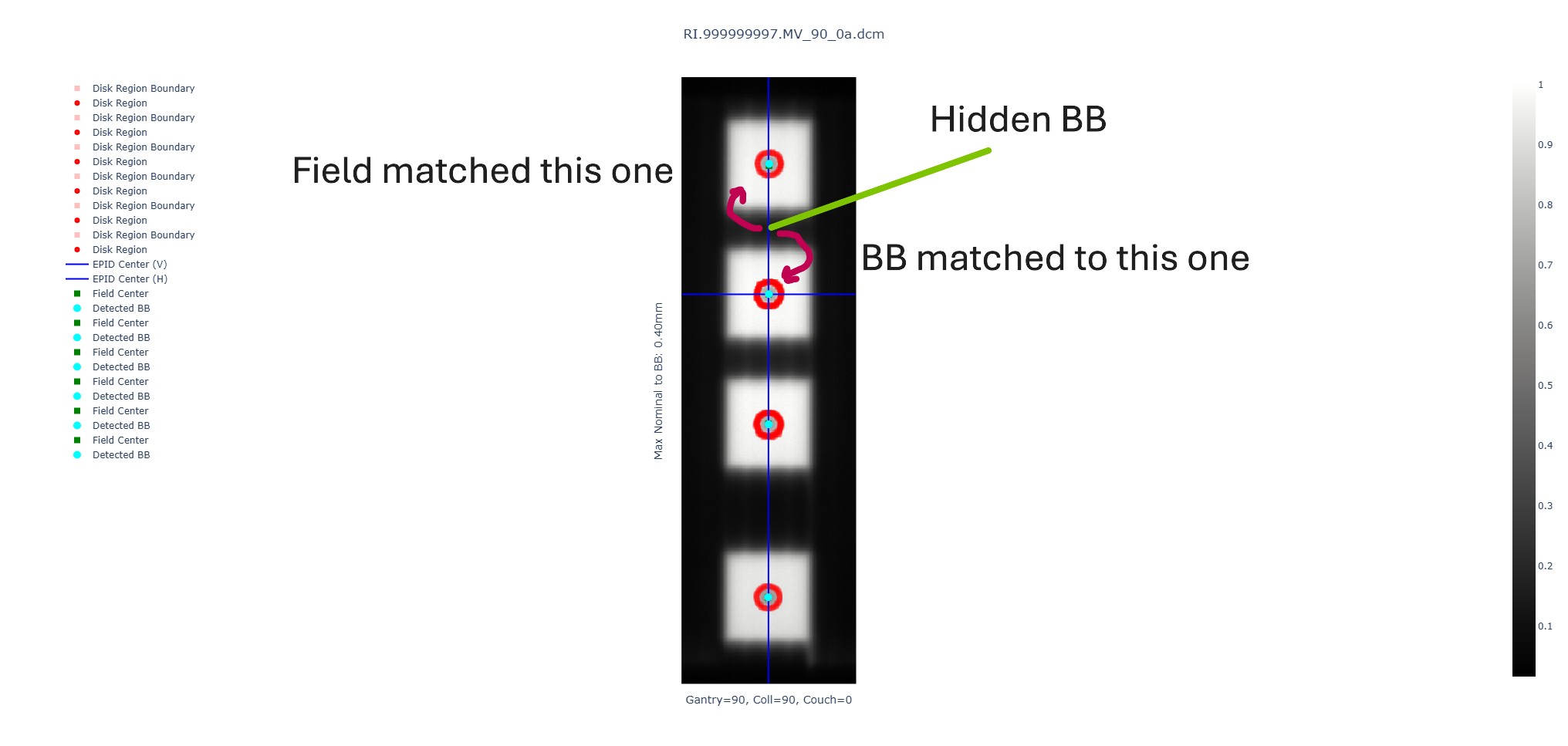

### Winston-Lutz¶

• #366 #333 The analysis will fail if the BB is not detected within 20mm of the center of the field. This should help artifacts from being detected.
• The Winston-Lutz analysis has added an .analyze routine, just like all other major modules.
• #358 The user can now pass in an expected BB size. This will help analyses with smaller or very large BBs.
• The WLImage class has been renamed to WinstonLutz2D. This is to clarify usage as now documentation has been expanded to show using WL with a single image.

Note

• Replace any uses of axis constants (GANTRY, COLLIMATOR, etc) with the enum version: Axis.GANTRY, …
• Add a <instance>.analyze(...) call to each WinstonLutz instantiation.
• Set the BB size if needed. The algorithm has a default of 5mm and is relatively forgiving (+/-2mm), but for very small BBs you should set it lower than the default of 5mm. E.g. .analyze(bb_size_mm=3)
• If using WLImage, rename to WinstonLutz2D. Add .analyze() calls as well as appropriate.

### I/O¶

• An SNC Profiler file parser has been added: pylinac.core.io.SNCProfiler. This can be used standalone, but since the data is not encoded to begin with it’s really about handling it as a tool for other modules. Currently, this is being used in the Field Analysis module.

from pylinac.core.io import SNCProfiler

snc = SNCProfiler("path/to/data.prs")
snc.data  # ndarray
x, y, pos, neg = snc.to_profiles()  # returns SingleProfiles


### Planar Imaging¶

• Sun Nuclear kV and MV phantoms have been added to the arsenal.
• The PTW EPID QC phantom has been added to the arsenal.
• The Standard Imaging QC-kV1 phantom has been added to the arsenal.
• #339 The user can now pass an SSD value for their phantoms. The default is 1000mm, but if you set it on your panel you can pass something like 1400mm.
• The phantom-finding algorithm has been refactored to be more extensible. This does not affect normal users, but reduces the amount of duplicate code. It also makes adding new phantoms easier.
• Generally speaking, the phantoms should all be roughly centered along the CAX. Previously, the phantom could be offset from the CAX. Due to general difficulty in finding the phantom reliably for the majority of clinics, I am enforcing this as a restriction. This shouldn’t affect too many people but should make the ROI-finding algorithm better.
• The low contrast background ROI (i.e. the base level of contrast) has been adjusted for some phantoms (QC-3 and Doselab). Previously, it could either be in a “dark” region, meaning a high-attenuation area, or a “light” region, meaning a low-attenuation area. This has been standardized for all phantoms to be the “light” region. A new doc page for contrast has been added to the online documentation.
• 3 more high-contrast ROIs have been added to the LeedsTOR to help get rMTFs below 50%.
• The SI QC-3 analysis will now handle both typical orientations (gantry 0 and 90), where the “1” is pointing toward the gantry. This produces two different angles. The phantom should still be angled at 45 degrees from a cardinal angle.

Note

• If you have defined any custom phantoms, read the new documentation: Creating a custom phantom. Your existing code will likely NOT break but the new format is much easier for extensibility.
• Evaluate the new contrast values versus your existing ones for the QC3 and Doselab phantoms. Moving forward, the above definition of contrast ROI-picking will be used.
• For the LeedsTOR, check the MTF of an existing image. Since adding more high-contrast ROIs, the rMTF may change if you were using a value below the lowest detected value. You do/will get warnings about being below the minimum MTF if you already do so.

### Picket Fence¶

Overall, most code shouldn’t need to change from v2.5. From v2.4 or below, the way MLCs are passed and used has changed.

• Wide-gap tests should now work better than before. However, please read the Acquiring good images section.
• The mlc parameter of the PicketFence constructor has been changed to use an Enum or MLCArrangement: MLC. See the Customizing MLCs section for more.
• A crop_mm parameter has been added to the PicketFence constructor. This is for cropping the edges of images. The primary cause of issues with the PF module is dirty/noisy/dead edges.
• The orientation parameter of the analyze method has been changed to use an Enum or str: Orientation.
• A required_prominence parameter has been added to analyze. This is to prevent multiple peaks detection for wide-gap images.
• A fwxm parameter has been added to analyze. This is to allow the user to set the FWXM height to use for the MLC kiss profile.
• A results_data method has been added. See General above.
• The colored rectangular overlay has been reduced in size slightly.

### CBCT¶

• A contrast parameter was added to analyze. This uses an Enum and has 3 options; see Low contrast.
• A visibility_threshold parameter was added and is a replacement for cnr_threshold. See the General section and Visibility. Compared to cnr_threshold, the default value will give approximately the same results for # of low-contrast ROIs “seen”. About 30% of the test datasets had a different # detected, but the detected vs expected number were either too high or too low, so there was no single value to perfectly replace the default cnr_threshold value.
• With the above, the contrast calculations have been standardized. Compared to previously, the contrast and contrast-to-noise now use the same equation for contrast. Previously, contrast was using the Michelson equation and contrast-to-noise was using the Weber definition. Now, contrast is always calculated with the definition given during instantiation.
• ROI colors for low contrast ROIs that are “seen” have changed from blue to green to match other modules.

Note

• Change/check the contrast method of .analyze().
• Change/check the visibility threshold of .analyze().
• Verify the # of low contrast ROIs “seen”.

### Machine logs¶

• #161 Trajectory logs v4.0 are now supported

## v 2.5.0¶

Warning

There appears to be an issue with reading TIFF images on Windows with libtiff=4.1.0. If you experience TIFF header errors, downgrade libtiff to <4.1.

### General¶

• This release adds utility functions to the image generator module and also a change in configuration of the picket fence module, allowing users to create their own MLC configurations.

#### Dependencies¶

• py-linq has been added as a dependency. It’s pure python so it will not add secondary dependencies.

### Picket Fence¶

• MLC configuration has changed from being empirical to a priori, meaning that leaves are no longer determined, but passed in via configuration. This allows users to configure their own custom MLCs arrangements. See Customizing MLCs.
• Linked with the above, the is_hdmlc parameter is deprecated and users should now use the mlc parameter in the constructor.
• The colored overlay is now broken up into the individual leaf kisses rather than one line.
• Several internal classes were removed or overhauled. This should not affect you if you’re just using the basic routines like analyze(). Settings no longer exists, MLCMeas is now MLCValue. PicketManager no longer exists.

### Image generator¶

In the previous release, a new image generator module was introduced. This release adds utility scripts for easily creating Winston-Lutz and picket fence image sets. See the Helpers section of the generator documentation.

## v 2.4.0¶

### General¶

Thanks to several contributors for making pull requests in this release!

• A new image generator module has been added. This module can generate custom test images easily: Image Generator.

• The core peak-finding functionality used in several modules was refactored to use scipy’s implementation. When pylinac was built, such a function did not exist. Now that it does, the custom code has been removed (yay!). The major difference between this implementation and pylinac’s is the use of “prominence”, which is a concept I had never heard of. The resulting peak-finding functionality is the same for max-value peak-finding. For FWXM peak finding, this can have small differences. The biggest differences would be for profiles that have a very asymmetric “floor”. I.e. if one valley on one side of the peak has a very different value than the other side then a difference would be detected. Fortunately, this is a very rare scenario.

• Documentation plots have been updated to be generated on-the-fly. This will result in better agreement with documentation plots vs. what people experience. Previously, some old figures were used that did not match the functionality.

• The GUI function was removed from the pylinac init file. This was causing issues when deploying to Heroku as calls to tkinter caused failures. The GUI should be called from the submodule now:

# old
import pylinac
pylinac.gui()

# new
from pylinac.py_gui import gui
gui()


#### Dependencies¶

Two requirements have been bumped: scipy>=1.1 and scikit-image>=0.17.

### CT Module¶

If you do not perform any advanced functionality, no changes are noteworthy.

The CT module has been reworked to be far more extensible to adjust individual component modules as desired. Previously, only the offset of the modules was easily adjustable. To edit individual modules the user would have to edit the source code directly. Now, the user can subclass individual modules, overload attributes as desired and pass those to the parent CatPhan class. A new tutorial section has been added to the documentation showing examples of this functionality.

• The CTP404 and 528 modules have been refactored into CatPhan-specific classes for easier overloading by appending “CP<model>”. E.g. CTP404CP503.
• CTP modules had an inconsistent naming scheme for rois. E.g. CTP404 had hu_rois and bg_hu_rois while CTP515 had inner_bg_rois and rois. This has been standardized (mostly) into rois for all modules and, where applicable, background_rois. Some modules still have more relevant attrs, e.g. thickness_rois for CTP404, but they all have have rois.
• Due to the above refactor, you may notice small differences in the contrast constant value and thus the ROIs “seen”.
• HU differences are now signed. Previously the absolute value of the difference was taken.
• HU nominal values have been adjusted to be the mean of the range listed in the CatPhan manuals. The changes are as follows: Air: N/A (this is because most systems have a lower limit of -1000), PMP: -200 -> -196, LDPE: -100 -> -104, Poly: -35 -> -47, Acrylic 120 -> 115, Delrin: 340 -> 365, Teflon: 990 -> 1000, Bone (20%): 240 -> 237, Bone (50%): N/A.

### Flatness & Symmetry¶

The flatness & symmetry module has been updated to allow for profiles of a select width to be analyzed rather than a single pixel profile.

• A filter parameter has been added to the constructor. This filter will apply a median filter of pixel size x.

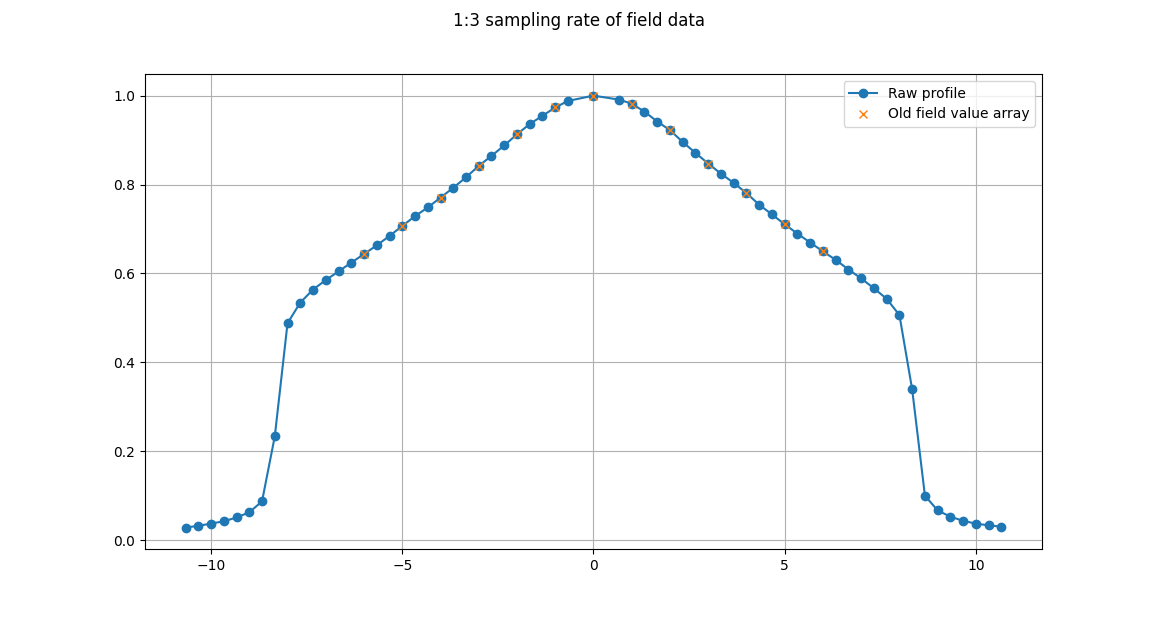

• Due to the new peak-finding function, flatness and symmetry values may be slightly different. In testing, if a filter was not used the values could change by up to 0.3%. However, when a filter was applied the difference was negligible.
• Two new keyword parameters were added to analyze: vert_width and horiz_width. You can read about their usage in the analyze documentation.
• The plot() method was renamed to plot_analyzed_image() to match the rest of the modules.

### Watcher¶

The watcher script has been officially deprecated for now (it was broken for a long time anyway). A better overall solution is to use something like QATrack+ anyway =).

### Bug Fixes¶

• #325 The Leeds angle detection should be more robust when the phantom angle is very close to 0.
• #313 The catphan CTP486 module had an inverted top and bottom ROI assignment.
• #305 The Leeds invert parameter was not being respected.
• #303 Un-inverted WL image analysis would give an error.
• #290 Catphan HU linearity differences are now signed.
• #301 Loading starshots and picket fences from multiple images has been fixed.
• #199 Printing Picket Fence PDFs with a log has been fixed.

## v 2.3.2¶

### Bug Fixes¶

• #285 The SI QC-3 module was incorrectly failing when the phantom was at 140cm due to a faulty mag factor.

## v 2.3.1¶

### Bug Fixes¶

• #281 The ct module had a wrong usage of the new MTF module that caused a break.

## v 2.3.0¶

### General¶

• The dependencies have been updated. Scikit-image min version is now 0.13 from 0.12. There is also no upper pin on numpy or scikit-image.
• The planar imaging module was overhauled.
• An MTF core module was introduced to refactor and standardize the MTF calculations performed across pylinac.
• The Winston-Lutz 2D and 3D algorithms were improved.

### Winston Lutz¶

• The coordinate space definition has changed to be compatible with IEC 61217. This affects how to understand the 3D shift vector. The bb_shift_instructions have been modified accordingly to still give colloquial instructions correctly (i.e. “Left 0.3mm”).
• The WL module received an internal overhaul with respect to the 3D shift algorithm (i.e. the BB shift vector/instructions). The 3D algorithm was reimplemented according to D Low’s 1994 paper. Generally speaking, the results are more stable across multiple datasets, however, you may see individual differences of up to 0.3mm.
• Due to above, the bb_<axis>_offset and epid_<axis>_offset properties have been removed.
• Two new image categorizations have been added: GB Combo and GBP Combo. These represent a gantry/collimator combination image with the couch at 0 and gantry/collimator/couch image where all axes are rotated. GBP Combo is a replacement for ALL. This change should only affect users who explicitly call methods that ask for the image set like .axis_rms_deviation, .plot_axis_images, etc.
• A new property has been added: .gantry_coll_iso_size which calculates the isocenter size using both gantry and collimator images.
• A new property has been added to individual images: .couch_angle_varian_scale. This conversion is needed to go from IEC 61217 to “Varian” scale for proper 3D shift vector calculation per the 3D algorithm change. Users likely wouldn’t need this, but it’s there.
• The 2D CAX->BB vector is improved slightly (#268). Thanks to @brjdenis and @SimonBiggs for bringing this to my attention and helping out.

### Planar Imaging¶

• The Doselab MC2 (MV & kV) phantom has been added to the planar imaging module.
• The planar imaging module has been overhauled. The automatic detection algorithms have been spotty with no easy way of correcting the inputs. Further, each phantom had a few subtle differences making them just different enough to be annoying.
• To this end, the phantom classes have been refactored to consistently use a base class. This means all main methods behave the same and give a standardized output.
• Creating new custom phantom classes is now very easy. A new section of the planar imaging documentation has been added as a guide.
• A results method has been added to the base class, thus inherited by all phantom classes.
• The parameter hi_contrast_threshold has been refactored to high_contrast_threshold.
• The attributes lc_rois and hc_rois have been refactored to low_contrast_rois and high_contrast_rois, respectively.
• The analyze method now includes new standardized parameters angle_override, size_override, and center_override. Each of these is exactly what it sounds like: overriding pylinac’s automatic algorithm. This is useful if the automatic algorithm gives an incorrect value.
• A phantom outline is now displayed on images. This outline is a simple representation and should only be used as a guide to the accuracy of the phantom spatial detection. I.e. you can use this outline to potentially override the center, size, or angle based on the outline.
• The automatic rotation analysis of the phantoms has been problematic. After spending a significant amount of time on the issue a satisfactory solution was not found. Therefore, the default angle or phantoms is that of the recommendation of the manufacturer. I.e. for the QC-3 phantom this means 45 degrees, as is the value when properly set up to the crosshairs.
• High and low contrast ROIs now show as red if they were below the defined threshold.

### Core Modules¶

• A new core module mtf has been created to standardize all MTF calculations in pylinac. Previously, these were handled independently. The new module contains one class MTF with one method relative_resolution to calculate the lp/mm value at the passed rMTF percentage.

### Bug Fixes¶

• This release contains critical fixes. All users of the Winston-Lutz and VMAT modules are strongly encouraged to upgrade as soon as possible.
• #268 The Winston-Lutz BB-finding method contained an error that would cause the BB center to be slightly off-center. After running unit tests, 5/16 datasets had a couch isocenter size difference of >0.2mm. Of those, 3 were around 0.2mm greater and 2 were around 0.2mm smaller. No other changes to iso sizes were detected within the testing tolerance of 0.2mm.
• #204 The VMAT module was sometimes using raw pixel values to calculate the ROI deviations. This would cause the deviations to appear smaller than they should have been if the Rescale and Intercept had been applied to the pixel data.
• #280 The Winston-Lutz 3D BB shift vector was underestimating the shifts by ~30-40%. A new 3D algorithm was implemented.
• #275 Requirements no longer have an upper pinning, although scikit-image minimum version was bumped from 0.12 to 0.13.
• #274 A new MTF module was created to refactor multiple ad hoc implementations.
• #273 The CatPhan HU module detection algorithm was loosened slightly to account for very thin slice scans which have increased noise.

## v 2.2.8¶

### General¶

Although the following changes should really mean a 2.3 release, I consider them small enough that I will keep it a maintenance release.

• An invert parameter was added to the analyze method of the FlatSym module so the user can override the automatic inversion.
• An invert parameter was added to the analyze method of the Starshot module so the user can override the automatic inversion.

### Bug Fixes¶

• #272 An ‘invert’ parameter was added to the ‘analyze’ function of the starshot module. This allows the user to force invert the image if pylinac’s auto-inversion algorithm is incorrect.
• #264/265 The ‘results’ method for the flatsym module would err out when images with 0 flatness were used.
• #191 The flatsym module was not loading non-DICOM images properly, causing processing failures.
• #202 The rotation determination of the QC-3 phantom was often incorrect. This has temporarily been fixed by hardcoding the angle to 45 degrees. This is a correct assumption if the phantom is being used according to the instructions.
• #263 The FlatSym module was sometimes incorrectly inverting images. This was fixed using a better histogram methodology.
• #266 The deviation of a VMAT ROI was not properly detecting failing segments if the value was negative.
• #267 The overall_passed property of the CTP515 module contained an error that would cause an error.
• #271 The line pair/mm values for the CT/CBCT module was inadvertently doubled. I.e. the lines/mm was given, not line pairs.

## v 2.2.7¶

### Winston-Lutz¶

• A small change was made to the Winston-Lutz BB finding algorithm to be more robust and use less custom code. The output from WL analyses should be within 0.1mm of previous values.
• A section was added to the documentation to describe how images are classified and the analysis of output from the .results() method.

### Bug Fixes¶

• #187 Scipy’s imresize function has been deprecated. Functionality was converted to use skimage.transform.resize().
• #185 Winston-Lutz PDF generation had an artifact causing catastrophic failure.
• #183 The Bakai fomula of the gamma calculation had an operational inconsistency such that dose-to-agreement other than 1% would give incorrect values of the gamma value.
• #190 The Catphan module had an inconsistency in the rMTF/spatial resolution determination. Some line pair regions would be detected for some phantoms and not for others. This was caused by the different CatPhan models having slighly different rotations of the CTP528 module. Pylinac now has model-specific boundaries.
• #192 The FlatSym plot would conflate the vertical and horizontal lines shown on the analyzed image. Analysis is unaffected, only the depiction of position.
• #194 The Leeds low contrast ROI color on the analyzed image was not consistent with the contrast plots. ROI color is now based on the pass/fail of the contrast constant, not the contrast.
• #196 Winston-Lutz images with a dense BB and low photon energy could cause BB detection to fail. A better BB-finding algorithm has been implemented.
• #197 EPID RMS deviation would return 0 for the .results() method always. This now calculates correctly.

## V 2.2.6¶

### Bug Fixes¶

• #157 This behavior is revered to pre-2.2.2 behavior to match the DFV and other software.
• #167 Originally, the fix for this was to raise an error and point to a workaround. At the time the fix was to add a parameter to v2.3.
Behavior was able to be changed internally to handle this case without an API change.

## V 2.2.5¶

### General¶

The watcher function has had several issues. It has been disabled and will be removed in v2.3.

### Bug Fixes¶

• #173 When forcing inversion of picket fence, the inversion came after the orientation determination, causing orientation to be wrong when inversion was needed.
• #171 The load_log function was not working correctly when passing a directory or ZIP archive.
• #172 Calling publish_pdf from log_analyzer without passing a filename would fail.
• #169 VMAT Dynalogs were calculating fluence incorrectly for CCW plans due to the gantry angle replacing the dose.
• #160 While addressing #160 initially, Trajectory logs were unknowningly affected. Behavior has been reverted to pre-2.2.2 behavior and documentation changed.

## V 2.2.4¶

### Bug Fixes¶

• #165 Machine log plots and PDFs showing the Leaf RMS were shown in cm, not in mm, as the axis title indicated.
• #167 Picket fence images where the pickets are too close to the edge perpendicular to the pickets will fail. This adds an explicit error and mentions a workaround. The next major version will include a padding parameter to apply this workaround.
• #168 Picket fence analyses now crop 2 pixels from every edge. This will allow Elekta images to be analyzed since they inexplicably have a column of dead pixels in EPID images. Should not affect Varian images.

## V 2.2.3¶

### Bug Fixes¶

• #158 Catphan roll determination algorithm has slightly widened the air bubble-finding criterion.

## V 2.2.2¶

### Bug Fixes¶

• #157 Dynalog MLC leaf error was calculated incorrectly. Expected positions were off by a row. Error results should be lower on average.
• #160 Dynalog MLC leaf internal pair mapping (1-61 vs 1-120) was different than documentation. Image calculations should not change.
• #162 The LeedsTOR angle_offset in the .analyze() method was not being followed by the high-contrast bubbles.
• #144 The LeedsTOR angle determination is much more robust. Previously, only certain orientations of the phantom would correctly identify.

## V 2.2.1¶

### Bug Fixes¶

• #153 Log analyser PDF publishing fix.
• #155 VMAT PDF report had tolerance listed incorrectly (absolute vs percentage) causing most tolerances to appear as zero due to rounding.

## V 2.2.0¶

### General¶

• #131 Typing has been added to almost every function and class in pylinac.
• F-strings have been incorporated. This bumps the minimum version for Python to 3.6.
• The publish_pdf method of every module has had its signature changed. Before, not all the signatures matched and only included a few parameters like author and unit name. This has been changed to filename: str, notes: str, list of str, open_file: bool, metadata: dict. Filename and open file are straightforward. notes is a string or list of strings that are placed at the bottom of the report (e.g. ‘April monthly redo’). Metadata is a dictionary that will print both the key and value at the top of each page of the report (e.g. physicist and date of measurement)
• The TG-51 module has been placed under a new module: Calibration (TG-51/TRS-398). This is because:
• A TRS-398 calibration module has been created TRS-398.
• The default colormap for arrays is now Viridis, the matplotlib default.
• A contributer’s guide has been added: Contributing.
• #141 The Pylinac logo has been included in the package so that PDFs can be generated without needing www access.
• A new dependency has been added: argue which handles input parameters.

### Flatness & Symmetry¶

• #130 The flatsym module has been completely rewritten. Documentation has also been updated and should be consulted given the number of changes: flatsym_module.

### VMAT¶

• The overall simplicity of use has been increased by automating & removing several parameters.
• #128 The VMAT class has been split into two classes: DRGS and DRMLC. Although there are now two classes instead of one, the overall simplicity has been increased, such as the following:
• The test parameter in analyze() is no longer required and has been removed.
• The type is no longer required in .from_demo_images().
• The demo method matches the other modules: .run_demo()
• All naming conventions have been deprecated.
• The x_offset parameter has been removed. The x-position is now based on the FWHM of the DMLC field itself. This means the x-position is dynamic and automatic.
• The delivery_types parameter has been removed. The delivery types of the images are now automatically determined.
• The methods for plotting and saving subimages (each image & the profiles) has been converted to a private method (_plot_subimage(), …). There is little need for a public method to plot individually.

### TG-51/Calibration¶

• #127 A TRS-398 module has been added. There are two main classes: TRS398Photon and TRS398Electron.
• #129 The TG-51 module has been refactored to add a TG51ElectronLegacy and TG51ElectronModern calibration class. The Legacy class uses the classic TG-51 values that require a kecal value and a Pgradient measurement. The Modern class uses the equations from Muir & Rogers 2014 to calculate kQ that updates and incorporates the Pgradient and kecal values. While not strictly TG-51, these values are very likely to be incorporated into the next TG-51 addendum as the kQ values for photons already have.
• Certain parameters have been refactored: volt_high and volt_low have been refactored to voltage_reference and voltage_reduced, m_raw, m_low, and m_opp have been refactored to m_reference, m_reduced, and m_opposite. These parameters are also the same for the TRS-398 classes (see #127).
• The kq function has been separated into three functions: kq_photon_pdd10x, kq_photon_tpr2010, and kq_electron.
• A PDD(20,10) to TPR(20,10) converter function has been added: tpr2010_from_pdd2010.
• Pressure and temperature conversion helper functions have been added: mmHg2kPa, mbar2kPa, fahrenheit2celsius. This can be used in either TG-51 or TRS-398 to get TPR without actually needing to measure it.
• Defaults were removed from most functions to avoid possible miscalibration/miscalculation.
• Most parameters of both TG-51 and TRS-398 were changed to be keyword only. This will prevent accidental miscalculations from simple positional argument mismatches.

### Bug Fixes¶

• #138/#139: Too many arguments when plotting the leaf error subplot for picketfence.
• #133: Trajectory log HDMLC status was reversed. This only affected fluence calculations using the equal_aspect argument.
• #134: Trajectory log fluence array values were not in absolute MU.

## V 2.1.0¶

### General¶

• After reflection, the package seems to have bloated in some respects. Certain behaviors are only helpful in very few circumstances and are hard to maintain w/ proper testing. They are described below or in their respective sections.
• The command line commands have been deprecated. All commands were simply shortcuts that are just as easy to place in a 1-2 line Python script. There was no good use case for it in the context of how typical physicists work.
• The interactive plotting using MPLD3 has been deprecated. Matplotlib figures and PDF reports should be sufficient. This was a testing nightmare and no use cases have been presented.
• The transition of the method return_results() to results() is complete. This was baked-in from the very beginning of the package. It is expected that results would return something, nor is there any other corresponding method prefixed with return_.
• Pip is now the recommended way to install pylinac. Packaging for conda was somewhat cumbersome. Pylinac itself is just Python and was always installable via pip; it is the dependencies that are complicated. The wheels format seems to be changing that.
• Some dependency minimum versions have been bumped.

### CatPhan¶

• The module was refactored to easily alter existing and add new catphan models.
• The CatPhan HU module classifier has been deprecated. Its accuracy was not as high as the original brute force method. Thus, the use_classifier keyword argument is no longer valid.
• CatPhan 604 support was added thanks to contributions and datasets from Alan Chamberlain. More datasets are needed to ensure robust analysis, so please contribute your dataset if it fails analysis.
• The CTP528 slice (High resolution line pairs) behavior was changed to extract the max value from 3 adjacent slices. This was done because sometimes the line pair slice selected was slightly offset from the optimum slice. Using the mean would lower MTF values. While using the max slightly increases the determined MTF from previous versions, the reproducibility was increased across datasets.

### Winston-Lutz¶

• Certain properties have been deprecated such as gantry/coll/couch vector to iso. These are dropped in favor of a cumulative vector.

• A BB shift vector and shift instructions have been added for iterative WL testing. I.e. you can get a BB shift to move the BB to the determined iso easily.

import pylinac

wl = pylinac.WinstonLutz.from_demo_images()
print(wl.bb_shift_instructions())
# output: RIGHT 0.29mm; DOWN 0.04mm; OUT 0.41mm
# shift BB and run it again...

• Images taken at nonzero couch angles are now correctly accounted for in the BB shift.

• Images now do not take into account shifts along the axis of the beam (#116).

• The name of the file will now not automatically be interpreted if it can. This could cause issues for valid DICOM files that had sufficient metadata. If the image was taken at Gantry of 45 and the file name contained “gantry001” due to, e.g., TrueBeam’s default naming convention it would override the DICOM data. (#124)

### Picket Fence¶

• Files can now allow for interpretation by the file name, similar to the WL module. This is helpful for Elekta linacs that may be doing this test (#126).

### Core Modules¶

• is_dicom and is_dicom_image were moved from the utilites module to the io module.
• field_edges() had the parameter interpolation added so that field edges could be computed more accurately (#123)
• A new class was created called LinacDicomImage. This is a subclass of DicomImage and currently adds smart gantry/coll/couch angle interpretation but may be extended further in the future.

## V 2.0.0¶

### General¶

• Version 2.0 is here! It may or may not be a real major version update worthy of ‘2.0’, but ‘1.10’ just didn’t sound as good =)

• A GUI has been added! Most major modules have been added to the GUI. The GUI is a very simple interface that will load files and publish a PDF/process files. To start the gui run the gui() function like so:

import pylinac
pylinac.gui()


You may also start the GUI from the command line:

pylinac gui


The GUI is a result of a few causes. Many physicists don’t know how to code; this should remove that barrier and allow Pylinac to get even more exposure. I have always felt the web was the future, and it likely is, but pylinac should be able to run on it’s own, and because a rudimentary GUI is relatively easy, I’ve finally made it. The GUI is also free to use and has no hosting costs (unlike assuranceQA.com). Also, due to other ventures, a new job, and a newborn, I couldn’t devote further time to the assuranceQA site–A native GUI is much easier albeit much more primitive.

• Some module PDF methods now don’t require filenames. If one is not passed it will default to the name of the file analyzed. E.g. “abc123.dcm” would become “abc123.pdf”. Modules where multiple images may be passed (e.g. a CBCT directory) still requires a filename.

• PDF methods now have a boolean parameter to open the file after publishing: open_file.

• A number of dependencies have been bumped. Some were for specific reasons and others were just out of good practice.

### Watcher¶

• Closes #84 Which would overwrite the resulting zip and PDF of initially unzipped CBCTs performed on the same day. I.e. multiple CBCTs would result in only 1 zip/PDF. The image timestamp has been edited so that it will include the hour-minute-second of the CBCT to avoid conflict.
• Closes #86 - Which had a discrepancy between the YAML config setting of the file source directories and what the watcher was looking for.

### CatPhan¶

• Closes #85 Which displayed the nominal CBCT slice width on PDF reports, not the detected width for the CatPhan504 & CatPhan600.
• Closes #89 which had variables swapped in the CatPhan503 PDF.
• The contrast_threshold parameter has been renamed to cnr_threshold. The meaning and values are the same, but has been renamed to be consistent with other changes to the roi module.
• Due to various problems with the SVM classifier, the default setting of the classifier has been set to False.

### Planar Phantoms¶

• The Las Vegas phantom has been added to the planar imaging module. It’s use case is very similar to the existing planar phantoms:

from pylinac import LasVegas

lv = LasVegas('myfile.dcm')
lv.analyze()
lv.publish_pdf()
...

• The pylinac.planar_imaging.LeedsTOR.analyze() method has an additional parameter: angle_offset. From analyzing multiple Leeds images, it has become apparent that the low contrast ROIs are not always perfectly set relative to the phantom. This parameter will allow the user to fine-tune the analysis to perfectly overlay the low contrast ROIs by adding an additional angle offset to the analysis.

### Winston-Lutz¶

• Closes enhancement #63 Files can now have the axis settings interpreted via the file name. E.g: “myWL_gantry90_coll0_couch340.dcm”. See Accessing data for further info.
• The x/y/z_offset properties of the WLImages which were deprecated many versions ago have finally been removed.
• The collimator/gantry_sag and associated plot_gantry_sag methods have been deprecated. A similar method has been implemented that utilizes the RMS deviation. To achieve the “gantry sag” using RMS errors use the method axis_rms_deviation with parameter value=’range’.

### TG-51¶

• The Electron class has been adjusted to reflect the Muir & Rogers 2014 kecal data which allows the user to calculate kQ from just R50 data.
• The kq function now accepts an r_50 parameter to calculate kQ based on the above data.

### Core Modules¶

• The Image class has been fully depricated and is no longer available. Use the functions available in the :module:pylinac.core.image module instead. See the version 1.4.0 release notes for further details.
• The remove_edges method has been deprecated and is now an alias for crop. The crop method should be used instead. Parameters are exactly the same.

## V 1.9.0¶

### General Changes¶

• This release introduces PDF reports for most major modules. All classes with this functionality have been given a publish_pdf method. This method takes an output filename and other optional data like the author, machine/unit, and any custom notes. See e.g. pylinac.starshot.Starshot.publish_pdf() or pylinac.picketfence.PicketFence.publish_pdf().
• The watch/process functions have been tweaked to best work on one unit per run. Multiple units/machines should have their own config files. A new article task_scheduler describes how to use the process function with Windows Task Scheduler to regularly pull and analyze files.

### CatPhan¶

• The CatPhan classes, when passed a directory during instantiation, will search through the DICOM files for Series UIDs and analyze the files of the most numerous UID. E.g. if a folder has 80 DICOM images including one set of 60 CBCT images and a total of 20 VMAT and picket fence images, it will find the CBCT files via UID and analyze those, leaving the other images/files alone. This is useful for when all QA images are simply dumped into one folder.
• Raw, uncompressed CatPhan DICOM files can optionally be compressed to a ZIP file after analysis using the new zip_after argument in the analyze method.

### Watcher/Processer¶

• The watcher/process functions have been reworked to produce PDF files rather than PNG/txt files.
• If upgrading the watch/process function from a previous pylinac version be sure to copy/amend the new default YAML config file as new keywords have been added and using old YAML files will error out.
• Several new configuration keywords have been changed/added. In the general section, use-classifier has been deprecated in favor of individual module keywords of the same name. This allows a user to use a classifier for, say, picket fence images but not for winston lutz images. A unit keyword has been added that specifies which unit the files should be considered to be from. This unit name is passed to the PDF reports that are generated. If you have multiple units, make individual YAML configuration files, one for each unit.
• CatPhan, VMAT, and Winston-Lutz can now take raw, unzipped images as well as the usual ZIP archive. ZIP archives are detected only by keywords as usual. For uncompressed CatPhan images, the analyzer will look for any CatPhan DICOM file groups via UID (see above CatPhan section), analyze them, and then ZIP the images until no further sets can be found. For VMAT and Winston-Lutz if the use-classifier setting is true their respective sections in the YAML configuration then an image classifier is used to group images of the given type and then analyze them.

## v 1.8.0¶

### General Changes¶

• This release focuses solely on the CBCT/CatPhan module.
• Pylinac now has a logo! Check out the readme on github or landing page on ReadTheDocs.

### Watcher/Processer¶

• The cbct analysis section has been renamed to catphan. Thus, the YAML config file needs to look like the following:

# other sections
...

catphan:  # not cbct:
...

...


### CBCT/CatPhan¶

• The Python file/module has been renamed to ct from cbct. E.g.:

from pylinac.ct import ...


Most users import directly from pylinac, so this should affect very few people. This was done to generalize the module to make way for other CT/CBCT phantoms that pylinac may support in the future.

• The CBCT module can now support analysis of the CatPhan 600.

• Automatic detection of the phantom is no longer be performed. Previously, it depended on the manufacturer to determine the phantom (Varian->504, Elekta->503), but that did not consider users scanning the CatPhan in their CT scanners, which would give inconsistent results.

• Due to the above, separate classes have been made for the CatPhan models. I.e. flow looks like this now:

# old way
from pylinac import CBCT
...

# new way
from pylinac import CatPhan504, CatPhan600
cat504 = CatPhan504('my/folder')
cat600 = CatPhan600.from_zip('my/zip.zip')

• A classifier has been generated for each CatPhan. Thus, if loading a 503, a 503 classifier will be used, rather than a general classifier for all phantoms.

• The use_classifier parameter has been moved from the analyze() method to the class instantiation methods like so:

from pylinac import CatPhan504
cat504 = CatPhan504('my/folder', use_classifier=True)
cat504.analyze()  # no classifier argument

• MTF is now more consistently calculated. Previously, it would simply look at the first 6 line pair regions. In cases of low mA or very noisy images, finding the last few regions would error out or give inconsistent results. Contrarily, high dose/image quality scans would only give MTF down to ~50% since the resolution was so good. Now, MTF is searched for region-by-region until it cannot find the correct amount of peaks and valleys, meaning it is now lost in the noise. This means high-quality scans will find and calculate MTF over more regions and fewer for low-quality scans. In general, this makes the MTF plot much more consistent and usually always gives the RMTF down to 0-20%.

• Individual modules are now only composed of 1 slice rather than averaging the nearby slices. Previously, for consistency, a given module (e.g. CTP404) would find the correct slice and then average the pixel values of the slices on either side of it to reduce noise and give more consistent results. The drawback of this method is that results that depend on the noise of the image are not accurate, and signal/noise calculations were always higher than reality if only looking at one slice.

## v 1.7.2¶

• Fixed (#78) - Certain CBCT datasets have irregular background values. Additionally, the dead space in the square CT dataset outside the field of view can also be very different from the air background. This fix analyzes the dataset for the air background value and uses that as a baseline value to use as a CatPhan detection threshold.

## V 1.7.0¶

### General Changes¶

• The underlying structure of the watcher script has been changed to use a different framework. This change allows for analysis of existing files within the directory of interest.
• A new module has been introduced: tg51, handling several common equations and data processing for things relating to TG-51 absolute dose calibration such as Kq, PDDx, Dref, pion, ptp, etc. It also comes with classes for doing a full TG-51 calculation for photons and electrons with cylindrical chambers.

### Log Analyzer¶

• The log analyzer has changed from having a main class of MachineLog, to the two distinct log types: Dynalog and TrajectoryLog. These classes are used the same way as machinelog, but obviously is meant for one specific type of log. This allows for cleaner source code as the MachineLog class had large swaths of if/else clauses for the two log types. But don’t worry! If you’re unsure of the log type or need to handle both types then a helper function has been made: load_log. This function will load a log just like the MachineLog did and as the new classes. The difference is it will do automatic log type detection, returning either a Dynalog instance or TrajectoryLog instance. The MachineLogs class remains unchanged.
• More specific errors have been introduced; specifically NogALogError, NotADynalogError, and DynalogMatchError which are self-explanatory and more specific than IOError.
• Fixed (#74) which was causing Dynalogs with patient names containing a “V” to be classified as Trajectory logs.
• Fixed (#75) which was skewing gamma pass percent values.

### Planar Imaging¶

• The PipsProQC3 class/phantom has been refactored to correctly reflect its manufacturer to Standard Imaging, thus the class has been renamed to StandardImagingQC3.

### Directory Watching¶

• The watch command line argument now has a sister function, available in a regular Python program: watch(). With this command you can run the directory watcher programmatically, perfect for continuous log monitoring.
• A new command line argument is available: process. This command is also available in Python as process() which can be called on a directory either through the command line or programmatically and will analyze a folder once and then exit, perfect for analyzing a new monthly dataset.
• The structure of querying for files has been changed significantly. Instead of triggering on file changes (e.g. adding a new file to the directory), the watcher now constantly queries for new files at a specified interval. This means that when started, the watcher will analyze existing files in the folder, not just new ones.
• Information given in the email has been modified for logs, which may potentially contain PHI. Instead of the entire log file name given, only the timestamp is given. Additionally, the logs are no longer attached to the email.

## V 1.6.0¶

### General Changes¶

• Changed the default colormap of dicom/grayscale images to be “normal” gray vs the former inverted gray. Brought up in (#70) .
• Added a colormap setting that can be changed. See Changing Colormaps
• Added a utility function clear_data_files() to clear demo files and classifier files. This may become useful for classifier updates. I.e. the classifier for a given algorithm can be cleared and updated as need be, without the need for a new package release. More information on this will follow as the use of classifiers becomes normal.
• Added a dependency to the pylinac requirements: scikit-learn. This library will allow for machine learning advancements to be used with pylinac. I am aware of the increasing number of dependencies; pylinac has reached a plateau I believe in terms of advancement and I hope that this is the last major dependency to be added.

### Winston-Lutz¶

• (#69) Added EPID position tracking. Now the EPID location will show up in images and will give an output value when printing the summary. Relevant methods like cax2epid_distance() and epid_sag(), and plot_epid_sag() have been added. The summary plot has also been changed to include two sag plots: one for the gantry and one for the EPID.

• Certain properties of WL images have been deprecated. x_offset has been replaced by bb_x_offset() and respectively for the other axes. Usage of the old properties will raise a deprecation warning and will be removed in v1.7.

Note

The deprecation warnings may not show up, depending on your python version and/or warning settings. See the python docs for more info.

### CBCT¶

• Added a Support Vector Machine classifier option for finding the HU slice. The classifier is faster (~30%) than the brute force method. This option is available as a parameter in the analyze() method as use_classifier. In the event the classifier does not find any relevant HU slices, it will gracefully fall back to the brute force method with a runtime warning. Because of the fallback feature, the classifier is now used first by default. Using the classifier requires a one-time download to the demo folder, which happens automatically; just make sure you’re connected to the internet.

### Picket Fence¶

• An orientation keyword argument was added to the analyze() method. This defaults to None, which does an automatic determination (current behavior). In the event that the determined orientation was wrong, this argument can be utilized.

### Watcher Service¶

• A new option has been added to the general section: use-classifier. This option tells pylinac whether to use an SVM image classifier to determine the type of image passed. This allows the user not to worry about the file names; the images can be moved to the monitored folder without regard to naming. The use of the classifier does not exclude file naming conventions. If the classifier does not give a good prediction, the algorithm will gracefully fall back to the file name convention.

The following image types currently support automatic detection:

• Picket Fence
• Starshot
• Leeds TOR
• PipsPro QC-3

## V 1.5.6¶

• Adds the dtype keyword to DicomImage’s init method.
• (#66) - Fixed an issue with Winston-Lutz isocenters not calculating correctly.
• (#68) - Fixed the order of the Winston-Lutz images when plotted.
• Many thanks to Michel for noting the WL errors and submitting the first external pull request !
• Fixed several small bugs and runtime errors.

## V 1.5.5¶

• (#65) - Fixed the FlatSym demo file usage.

## V 1.5.4¶

• (#64) - Fixed the Picket Fence offset from CAX value, which previously were all the same value.

## V 1.5.1-3¶

### General Changes¶

• Fixed conda entry points so that the user can use pylinac console scripts.
• Moved demo images outside the package to save space. Files are downloaded when relevant methods are invoked.

## V 1.5.0¶

### General Changes¶

• The pylinac directory watcher service got a nice overhaul. Now, rather than running the watcher script file directly, you can use it via the console like so:

$pylinac watch "path/to/dir"  This is accomplished through the use of console scripts in the Python setup file. Once you upgrade to v1.5, this console command immediately becomes available. See the updated docs on Directory Watching. Previously, customizing behavior required changing the watcher script directly. Now, a YAML file can be generated that contains all the analysis configurations. Create and customize your own to change tolerances and even to trigger emails on analyses. • You can now anonymize logs via console scripts: $ pylinac anonymize "path/to/log/dir"


This script is a simple wrapper for the log analyzer’s anonymize function.

• Pylinac is now on anaconda.org – i.e. you can install via conda and forget about dependency & installation issues. This is the recommended way to install pylinac now. To install, add the proper channel to the conda configuration settings.

$conda config --add channels jrkerns  Then, installation and upgrading is as simple as: $ conda install pylinac


The advantage of saving the channel is that upgrading or installing in other environments is always as easy as conda install pylinac.

• Pylinac’s core modules (image, io, etc) are now available via the root package level.

# old way
from pylinac.core import image
# new way
from pylinac import image


### Starshot¶

• Relative analysis is no longer allowed. I.e. you can no longer pass images that do not have a DPI or SID. If the image does not have these values inherently (e.g. jpg), you must pass it explicitly to the Starshot constructor. No changes are required for EPID images since those tags are in the image file.
• Added a .from_zip() class method. This can contain a single image (to save space) or a set of images that will be combined.

### Log Analyzer¶

• The anonymize function received an optimization that boosted anonymization speed by ~3x for Trajectory logs and ~2x for Dynalogs. This function is very fast.

• Trajectory log subbeam fluences are now available. This works the same way as for the entire log:

log = MachineLog.from_demo_dynalog()
# calculate & view total actual fluence
log.fluence.actual.calc_map()
log.fluence.actual.plot_map()
# calculate & view the fluence from the first subbeam
log.subbeams[0].fluence.actual.calc_map()
log.subbeams[0].fluence.actual.plot_map()

• The gamma calculation has been refactored to use the image.gamma() method. Because of this, all threshold parameters have been changed to fractions:

log = MachineLog.from_demo_trajectorylog()
# old way
log.fluence.gamma.calc_map(threshold=10)  # <- this indicates 10% threshold
# new way
log.fluence.gamma.calc_map(threshold=0.1)  # <- this also indicates 10% threshold


The gamma threshold parameter requires the value to be between 0 and 1, so any explicit thresholds will raise an error that should be addressed.

• The .pixel_map attribute of the actual, expected, and gamma fluence structures have been renamed to array since they are numpy arrays. This attribute is not normally directly accessed so few users should be affected.

### Bug Fixes¶

• Fixed a bug that would not cause certain imaging machine logs (CBCT setup, kV setups) to be of the “Imaging” treatment type.

## V 1.4.1¶

• (#56) - Fixes a starshot issue where if the SID wasn’t 100 it was corrected for twice.
• (#57) - CR images sometimes have an RTImageSID tag, but isn’t numeric; this caused SID calculation errors.

## V 1.4.0¶

### General Changes¶

• Nearly all instance-based loading methods (e.g. Starshot().load('myfile')) have been deprecated. Essentially, you can no longer do empty constructor calls (PicketFence()). The only way to load data is through the existing class-based methods (e.g. Starshot('myfile'), Starshot.from_url('http...'), etc). The class-based methods have existed for several versions, and they are now the preferred and only way as there is no use case for an empty instance.

• Since v1.2 most URLs were downloaded and then the local (but temporary) files were loaded. This practice has now been standardized for all modules. I.e. any from_url()-style call downloads a temporary file and loads that. Because the downloads are to a temporary directory, then are removed upon exit.

• Loading images using the Image class has been deprecated (but still works) in favor of the new functions in the same module with the same name. Where previously one would do:

from pylinac.core.image import Image



One should now do:

from pylinac.core.image import load



Functionality is exactly the same, but supports a better abstraction (there is no reason for a class for just behaviors). The same change applies for the other loading methods of the Image class: load_url and load_multiples. The Image class is still available but will be removed in v1.5.

### Picket Fence¶

• PicketFence can now load a machine log along with the image to use the expected fluence to determine error. This means if an MLC bank is systematically shifted it is now detectable, unlike when the pickets are fitted to the MLC peaks. Usage is one extra parameter:

pf = PicketFence('my/pf.dcm', log='my/pf_log.bin')


### Winston-Lutz¶

• A from_url() method has been added.
• Upon loading, all files are searched within the directory, not just the root level. This allows for nested files to be included.

### CBCT¶

• The from_zip_file() class constructor method has been renamed to from_zip() to be consistent with the rest of pylinac’s similar constructors.

### Log Analyzer¶

• A new treatment_type has been added for CBCT and kV logs: Imaging.

• A new function has been added to the module: anonymize(). This function is similar to the .anonymize() method, but doesn’t require you to load the logs manually. The function is also threaded so it’s very fast for mass anonymization:

from pylinac.log_analyzer import anonymize

anonymize('my/log/folder')
anonymize('mylog.bin')


### Starshot¶

• The starshot minimization algorithm has been changed from differential evolution to the more predictable minimize. Previously, results would often be predictable, but would occasionally give really good or really bad results even though no input was changed. This was due to the algorithm; now that a stable algorithm is being used, results are reproducible.

### VMAT¶

• The VMAT loading scheme got a few changes. The Naming Convention is still the same, but images are always loaded upon instantiation (see General Changes). Also, if the naming convention isn’t used, image delivery types can be passed in during construction; e.g.:

VMAT(images=(img1, img2), delivery_types=['open', 'dmlc']

• Loading from a URL has been renamed from from_urls() to from_url() and assumes it points to a ZIP archive with the images inside.

### Bug Fixes¶

• (#47) - Fixes the trajectory log number of beam holds calculation. Thanks, Anthony.
• (#50) - Fixes RMS calculations for “imaging” trajectory logs. Previously, the RMS calculation would return nan, but now returns 0.

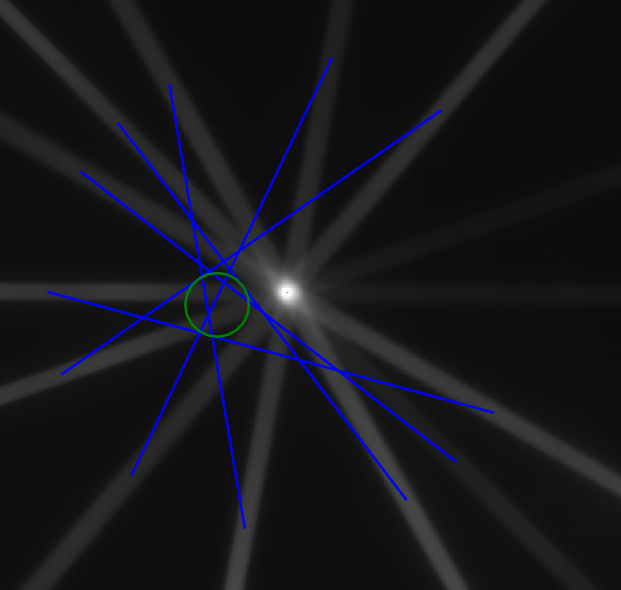

• (#51) - Results of the starshot wobble were sometimes extremely high or low. This has been fixed by using a more stable minimization function.
• (#52) - The starshot wobble diameter was incorrect. A recent change of the point-to-line algorithm from 2D to 3D caused this issue and has been fixed.
• (#53) - The Winston-Lutz BB-finding algorithm would sometimes pick up noise, mis-locating the BB. A size criteria has been added to avoid detecting specks of noise.
• (#54) - Imaging Trajectory logs, besides having no RMS calculation, was producing warnings when calculating the fluence. Since there is no fluence for kV imaging logs, the fluence now simply returns an 0’d fluence array.
• (#55) - Dead pixels outside the field were throwing off the thresholding algorithm and not detecting the field and/or BB.

## V 1.3.1¶

• (#46) - Fixes CBCT analysis where there is a ring artifact outside the phantom. Incidentally, analysis is sped up by ~10%.

## V 1.3.0¶

### General Changes¶

• A new dependency has been added: scikit-image. Given that pylinac is largely an image processing library, this is actually overdue. Several extremely helpful functions exist that are made use of in both the new modules and will slowly be incorporated into the old modules as needed. The package is easily installed via pip (pip install scikit-image) or via conda (conda install scikit-image) if using the Anaconda distribution. Finally, if simply upgrading pylinac scikit-image will automatically install via pip. For the sake of installation speed I’d recommend conda.
• ROI sampling for CBCT and Leeds classes have been sped up ~10x, making analysis moderately to much faster.
• All user-interface dialog functions/methods have been deprecated. E.g. PicketFence.from_UI() is no longer a valid method. To retain similar functionality use Tk to open your own dialog box and then pass in the file name. Specifically, this applies to the VMAT, Starshot, PicketFence, MachineLog(s), FlatSym, and CBCT classes. The original goal of pylinac was to be used for a standalone desktop application. The assuranceqa.com web interface is the successor to that idea and does not need those UI methods.

### Planar Imaging¶

• A new planar imaging class has been added: PipsProQC3. This class analyzes the PipsPro QC-3 MV imaging phantom. The class locates and analyzes low and high contrast ROIs.
• The Leeds phantom utilizes the scikit-image library to do a canny edge search to find the phantom. This will bring more stability for this class.

## V 1.2.2¶

• (#45) Fixes various crashes of Leeds analysis.

## V 1.2.1¶

• (#44) Fixed a stale wheel build causing pip install to install v1.1.

## V 1.2.0¶

### General Changes¶

• CatPhan 503 (Elekta) analysis is now supported.
• A new planar imaging module has been added for 2D phantom analysis; currently the Leeds TOR phantom is available.
• The requests package is no longer needed for downloading URLs; the urllib stdlib module is now used instead.
• Requirements were fixed in the docs and setup.py; a numpy function was being used that was introduced in v1.9 even though v1.8 was stated as the minimum; the new requirement is v1.9.
• Demonstration methods for the main classes have been fully converted to static methods. This means, for example, the following are equivalent: CBCT().run_demo() and CBCT.run_demo().

### Core Modules¶

• A tutorial on the use of the core modules is now available.
• A new mask core module was created for binary array operations.
• (#42) The Image classes now have a gamma method available.
• The Image classes’ median_filter() method has been renamed to filter(), which allows for different types of filters to be passed in.
• The Image class can now load directly from a URL: load_url().

### CBCT¶

• CatPhan 503 (Elekta) is now supported. Usage is exactly the same except for the low-contrast module, which is not present in the 503.
• The low contrast measurements now use two background bubbles on either side of each contrast ROI. The default contrast threshold has been bumped to 15, which is still arbitrary but fits most eyeball values.

### Starshot¶

• (#43) Keyword arguments can be passed to the init and class methods regarding the image info. For example, if a .tif file is loaded but the DPI is not in the image header it can be passed in like so:

star = Starshot('mystar.tif', dpi=100, sid=1000)


### Planar Imaging¶

• 2D analysis of the Leeds TOR phantom is available. Tests low and high contrast. A new Planar Imaging doc page has been created.

## V 1.1.1¶

• Winston-Lutz demo images were not included in the pypi package.

## V 1.1.0¶

### General Changes¶

• This release debuts the new Winston-Lutz module, which easily loads any number of EPID images, finds the field CAX and the BB, and can plot various metrics.

### Log Analyzer¶

• Logs can now be anonymized using the .anonymize() method for both MachineLog and MachineLogs.
• The .to_csv() methods for MachineLog and MachineLogs returns a list of the newly created files.
• MachineLogs can now load from a zip archive using .from_zip().

## V 1.0.3¶

• Fixes #39. MachineLog fluence was inverted in the left-right direction.
• Fixes #40. MachineLog fluence calculations from dynalogs were dependent on the load order (A-file vs. B-file).

## V 1.0.2¶

• Fixes #38. MachineLog fluence calculations would crash if there was no beam-on snapshots (e.g. kV images).

## V 1.0.1¶

• Fixes #37. Reading in a trajectory log txt file with a blank line caused a crash.

## V 1.0.0¶

### General Changes¶

• This release debuts the new interactive plotting for certain figures. Quickly, matplotlib line/bar plots (althouth not yet images/arrays) can be plotted and saved in HTML using the MPLD3 library. This is less of interest to users doing interactive work, but this adds the ability to embed HTML plots in web pages.
• Several numpy array indexing calls were converted to ints from floats to avoid the new 1.9 numpy type-casting warnings. This also speeds up indexing calls slightly.

### Picket Fence¶

• The analyzed image now has the option of showing a leaf error subplot beside the image. The image is aligned to the image such that the leaves align with the image.

### Starshot¶

• Plotting the analyzed starshot image now shows both the zoomed-out image and a second, zoomed-in view of the wobble.
• Each subplot can be plotted and saved individually.

### VMAT¶

• Plotting the analyzed image now shows the open and dmlc images and the segment outlines as well as a profile comparison between the two images. Each subplot can also be plotted and saved individually.
• MLCS is no longer a test option; DRMLC should be used instead.

## V 0.9.1¶

• Fixed a bug with the log analyzer treatment type property.

## V 0.9.0¶

### General Changes¶

• This release has a few new features for the CBCT class, but is mostly an internal improvement. If you only use the main classes (CBCT, PicketFence, Starshot, etc), there should be no changes needed.

### CBCT¶

• The CBCT analysis now examines low contrast ROIs and slice thickness.
• CBCT components have been renamed. E.g. the HU linearity attr has been renamed hu from HU.

### Starshot¶

• Fixes #32 which was causing FWHM peaks on starshots to sometimes be erroneous for uint8/uint16 images.

### Log Analyzer¶

• Fixes a bug which sometimes caused the parsing of the associated .txt log file for trajectory logs to crash.

## V 0.8.2¶

• Fixed a bug with the picket fence overlay for left-right picket patterns.
• Plots for starshot, vmat, and picketfence now have a larger DPI, which should mean some more detail for saved images.

## V 0.8.1¶

• Fixed an import bug

## V 0.8.0¶

### General Changes¶

• An upgrade for the robustness of the package. A LOT of test images were added for the Starshot, CBCT, PicketFence, and VMAT modules and numerous bugs were caught and fixed in the process.
• The debut of the “directory watcher”. Run this script to tell pylinac to watch a directory; if a file with certain keywords is placed in the directory, pylinac will analyze the image and output the analyzed image and text file of results in the same directory.
• A generic troubleshooting section has been added to the documentation, and several modules have specific troubleshooting sections to help identify common errors and how to fix them.

### VMAT¶

• Added a from_zip() and load_zip() method to load a set of images that are in a zip file.
• Added an x_offset parameter to analyze() to make shifting segments easier.

### PicketFence¶

• Fixed #30, which wasn’t catching errors on one side of the pickets, due to a signed error that should’ve been absolute.
• Two new parameters have been added to analyze(): num_pickets and sag_adjustment, which are somewhat self-explanatory. Consult the docs for more info.

### Starshot¶

• Fixed #29, which was causing analysis to fail for images with a pin prick.

### CBCT¶

• Fixed #28, which was applying the phantom roll adjustment the wrong direction.

## V 0.7.1¶

### General Changes¶

• Added .from_url() class method and .load_url() methods to most modules.

### PicketFence¶

• Fixed #23, which was not properly detecting pickets for picket patterns that covered less than half the image.
• Fixed #24, which was failing analysis from small but very large noise. A small median filter is now applied to images upon loading.

## V 0.7.0¶

### General Changes¶

• The scipy dependency has been bumped to v0.15 to accommodate the new differential evolution function using in the Starshot module.

### CBCT¶

• Whereas v0.6 attempted to fix an issue where if the phantom was not centered in the scan it would error out by adding a z-offset, v0.7 is a move away from this idea. If the offset given was not correct then analysis would error disgracefully. It is the point of automation to automatically detect things like where the phantom is in the dataset. Thus, v0.7 is a move towards this goal. Briefly, upon loading all the images are scanned and the HU linearity slice is searched for. Of the detected slices, the median value is taken. Other slices are known relative to this position.
• As per above, the z-offset idea is no longer used or allowed.
• Plots are now all shown in grayscale.
• If the phantom was not completely scanned (at least the 4 modules of analysis) analysis will now error out more gracefully.

## V 0.6.0¶

### General Changes¶

• Pylinac now has a wheel variation. Installation should thus be quicker for users with Python 3.4.
• Most main module classes now have a save method to save the image that is plotted by the plot method.

#### Class-based Constructors¶

• This release presents a normalized and new way of loading and initializing classes for the PicketFence, Starshot, VMAT and CBCT classes. Those classes all now accept the image path (folder path for CBCT) in the initialization method. Loading other types of data should be delegated to class-based constructors (e.g. to load a zip file into the CBCT class, one would use cbct = CBCT.from_zip_file('zfiles.zip')). This allows the user to both initialize and load the images/data in one step. Also prevents user from using methods before initialization (i.e. safer). See ReadTheDocs page for more info.

#### Dependencies¶

• Because the VMAT module was reworked and is now based on Varian specs, the pandas package will no longer be required. FutureWarnings have been removed.

### CBCT¶

• Bug #18 is fixed. This bug did not account for slice thickness when determining the slice positions of the relevant slices.
• Bug #19 is fixed. This bug allowed the loading of images that did not belong to the same study. An error is now raised if such behavior is observed.
• Demo files are now read from the zipfile, rather than being extracted and then potentially cleaning up afterward. Behavior is now quicker and cleaner.
• Individual plots of certain module/slices can now be done. Additionally, the MTF can be plotted.
• The user can now adjust the relative position of the slice locations in the event the phantom is not set up to calibration conditions.

### Log Analyzer¶

• Keys in the txt attr dict weren’t stripped and could have trailing spaces. Keys are now stripped.

### VMAT¶

• Ability to offset the segments has been added.
Complete overhaul to conform to new Varian RapidArc QA specs. This includes the following:
• Rather than individual samples, 4 or 7 segments are created, 5x100mm each.
• Deviation is now calculated for each segment, based on the average segment value.
• The DRMLC test has changed name to MLCS. E.g. passing a test should be: myvmat.analyze('mlcs'), not myvmat.analyze('drmlc'); the latter will still work but raises a future warning.

### Starshot¶

• Fixed a bug where an image that did not have pixels/mm information would error out.
• Added a tolerance parameter to the analyze method.

## V 0.5.1¶

### Log Analyzer¶

• Axis limits are now tightened to the data when plotting log_analyzer.Axis data.
• Gamma map plot luminescence is now normalized to 1 and a colorbar was added.
• Bug #14 fixed, where Tlogs v3 were not loading couch information properly.
• Trajectory log .txt files now also load along with the .bin file if one is around.

### Starshot¶

• Multiple images can now be superimposed to form one image for analysis.

### VMAT¶

• load_demo_image() parameter changed from test_type to type

## V 0.5.0¶

• A new flatness & symmetry module allows for film and EPID image analysis.
• The log_analyzer module now supports writing trajectory logs to CSV.
• A FutureWarning that pandas will be a dependency in later versions if it’s not installed.

## V 0.4.1¶

• Batch processing of logs added via a new class.
• ~4x speedup of fluence calculations.

## V 0.4.0¶

• A Varian MLC picket fence analysis module was added; this will analyze EPID PF images of any size and either orientation.

## V 0.3.0¶

• Log Analyzer module added; this module reads Dynalogs and Trajectory logs from Varian linear accelerators.

### Starshot¶

• The profile circle now aligns with the lines found.
• Recursive option added to analyze for recursive searching of a reasonable wobble.
• Image now has a cleaner interface and properties

## V 0.2.1¶

• Demo files were not included when installed from pip

## V 0.2.0¶

• Python 2.7 support dropped. Python 3 has a number of features that Python 2 does not, and because this project is just getting started, I didn’t want to support Python 2, and then eventually drop it as Python 3 becomes more and more mainstream.
• Internal overhaul. Modules are now in the root folder. A core module with specialized submodules was created with a number of various tools.
• Demo files were assimilated into one directory with respective subdirectories.
• VMAT module can now handle HDMLC images.
• CBCT module was restructured and is much more reliable now.
• method names normalized, specifically the return_results method, which had different names in different modules.
• Lots of tests added; coverage increased dramatically.

## V 0.1.3¶

Overall

A module for analyzing CBCT DICOM acquisitions of a CatPhan 504 (Varian) has been added. The starshot demo files have been compressed to zip files to save space. A value decorator was added for certain functions to enforce, e.g., ranges of values that are acceptable. The “Files” directory was moved outside the source directory. -Starshot now reports the diameter instead of radius

## V 0.1.2¶

A PyPI setup.py bug was not properly installing pylinac nor including demo files. Both of these have been fixed.

## V 0.1.1¶

Several small bugs were fixed and small optimizations made. A few methods were refactored for similarity between modules.

## V 0.1.0¶

This is the initial release of Pylinac. It includes two modules for doing TG-142-related tasks: Starshot & VMAT QA

Versioning mostly follows standard semantic revisioning. However, each new module will result in a bump in minor release, while bug fixes will bump patch number.
