Images#

Pylinac deals nearly exclusively with DICOM image data. Film has been actively avoided where possible because of 1) the increased use and technological advances of EPIDs. EPID data also contains useful tags that give contextual information about the acquisition (unless you use Elekta). And 2) film images tend to be much messier in general; they often have markings on them such as a pin prick, marker writing to identify the image, or flash on the edges of the image where the scanner and film edge did not line up. That being said, pylinac can generally handle DICOM images and general images (PNG, JPG, etc) relatively well.

The image module within pylinac is quite powerful and flexible to do arbitrary operations for use in custom algorithms. For example, images can be loaded easily, filters applied, cropped, rotated, and more with straightforward methods.

How data is loaded#

Pylinac uses the excellent pydicom library to load DICOM images. The pydicom dataset is stored in pylinac images under the metadata attribute.

For non-DICOM images (JPG, PNG, TIFF, etc), the Pillow library is used.

To load an image, the easiest way is like so:

from pylinac import image

my_dcm = image.load("path/to/my/image.dcm")
my_dcm.metadata.GantryAngle  # the GantryAngle tag of the DICOM file
# these won't have the metadata property as they aren't DICOM
my_tiff = image.load("path/to/my/image.tiff")
my_jpg = image.load("path/to/my/image.jpg")

See the load() function for details. This will return an image-like object ready for plotting or manipulation. Note that XIM images are handled separately.

We can also test whether a file is image-like without causing an error if it’s not:

from pylinac import image

is_image = image.is_image("path/to/questionable.file")  # True or False

Image Manipulation#

To manipulate an image, such as cropping, simply run the method. Some examples:

from pylinac import image

my_dcm = image.load(...)
my_dcm.filter(size=0.01, kind="median")
my_dcm.fliplr()  # flip the image left-right
my_dcm.ground()  # set minimum value to 0; useful for images with short dynamic range
my_dcm.crop(pixels=30, edges=("top", "left"))
my_dcm.normalize()  # normalize values to 1.0
my_dcm.rot90(n=1)  # rotate the image by 90 degrees
my_dcm.bit_invert()  # flip the image so that dark is light and light is dark. Useful for EPID images.
my_dcm.plot()  # plot the image for visualization

These and similar methods are available to all types of images. However, some image types have additional properties and methods. For a DICOM that is from a linac EPID, we have a few extras. We need to load it specifically:

from pylinac import image

my_linac_dcm = image.LinacDicomImage("path/to/image.dcm")
my_linac_dcm.cax()  # a Point instance. E.g. (x=550, y=550)
my_linac_dcm.dpmm()  # the dots/mm at isocenter. Will account for the SID.

TIFF to DICOM#

Pylinac will often internally convert TIFF images to pseudo-DICOM files so that the same methods are available as a DICOM. To do so:

from pylinac import image

image.tiff_to_dicom(
    tiff_file="path/to/image.tiff",
    dicom_file="my_new_dicom.dcm",
    sid=1000,
    gantry=0,
    coll=0,
    couch=0,
    dpi=280,
)

We will now have a file in our working directory named my_new_dicom.dcm that is, for all intents and purposes, a DICOM file. It can be loaded with image.load() or pydicom like any normal DICOM.

Gamma#

We can compute the gamma between two arrays or images using gamma_2d():

import matplotlib.pyplot as plt
from pylinac import image

ref = image.load("reference_dicom.dcm")
eval = image.load("eval_dicom.dcm")

gamma = image.gamma_2d(
    reference=ref,
    evaluation=eval,
    dose_to_agreement=2,
    distance_to_agreement=3,
    global_dose=True,
    ...,
)

# gamma is a numpy array the same size as the reference/eval image
plt.imshow(gamma)

Pixel Data & Inversion#

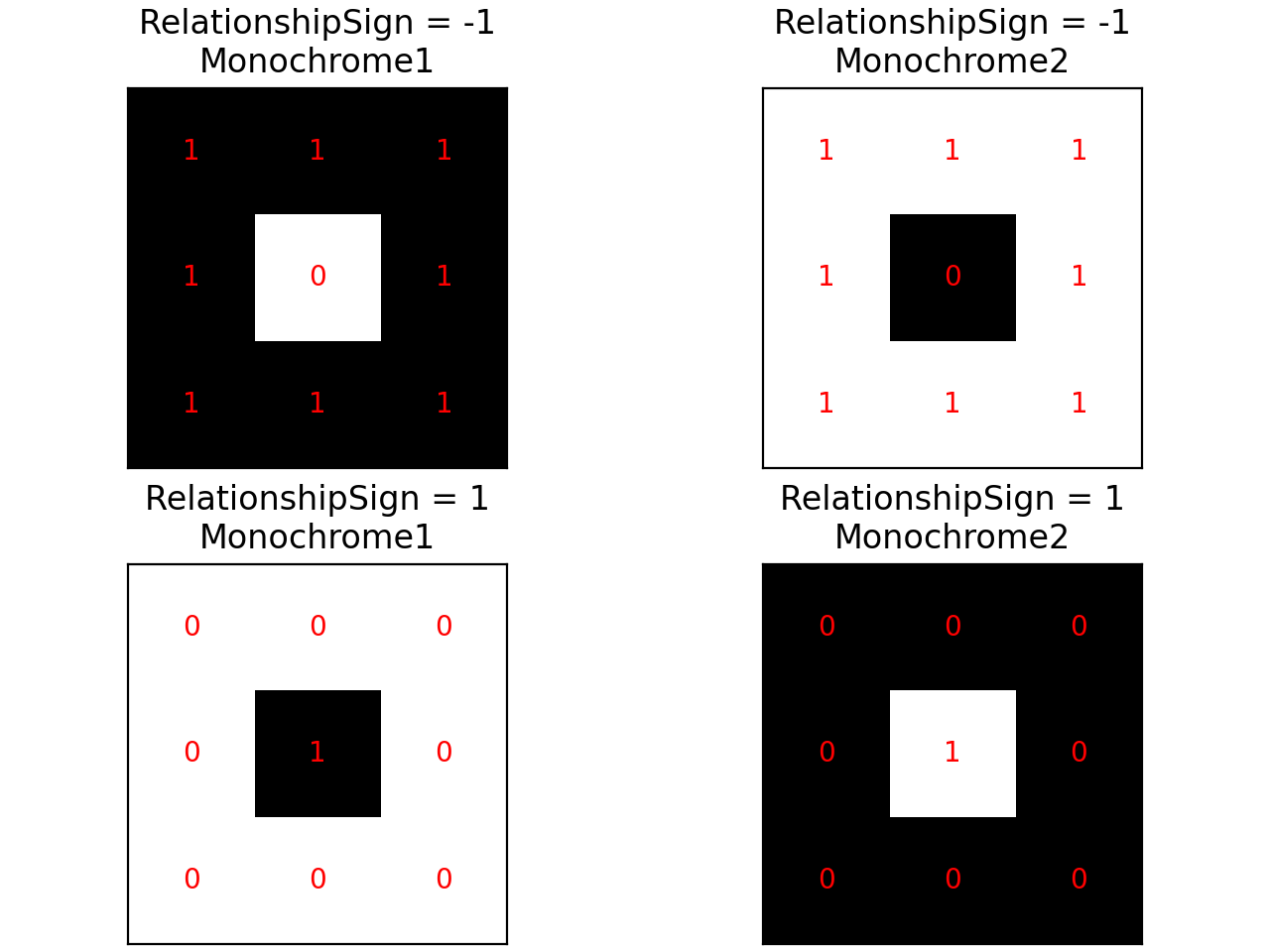

This is the most common issue when dealing with image analysis. The inversion, meaning the pixel value to radiation fluence relationship, of pylinac images used to be a simple imcompliment, meaning inverting the data while respecting the bit ranges, since most images’ raw pixel data was inverted. However, to handle newer EPID images that included more and better pixel relationships, this has changed in v3.0.

Note

The axiom for pylinac (for v3.0+) is that higher pixel values == more radiation == lighter/whiter display

Image pixel values will proceed through the following conditions. The first condition that matches will be executed:

  • If the raw_pixels parameter is set to True, no tags will be searched and the values from the DICOM file will be used directly. E.g.

    from pylinac.core import image

dcm = image.load("my_dcm_file.dcm", raw_pixels=True)
# OR
dcm = image.DicomImage("my_dcm_file.dcm", raw_pixels=True)

    New in version 3.13.

  • If the image has the Rescale Slope, Rescale Intercept and the Pixel Intensity Relationship Sign attributes, all of them are applied with a simple linear correction: \(P_{corrected} = Sign * Slope * P_{raw} + Intercept\) Images from newer linac platforms appear more likely to have this attribute.

  • If the image only has the Rescale Slope and Rescale Intercept but not the relationship tag then it is applied as: \(P_{corrected} = Slope * P_{raw} + Intercept\). This is the most common scenario encountered to date.

    Note

    It is possible that the slope has a negative value which is implicitly applying a relationship and would be equivalent to the first case, however, older images often have a simple positive slope relationship.

  • If the image does not have these two tags, then an imcompliment is applied: \(new array = -old array + max(old array) + min(old array)\). Very old images will likely reach this condition.

Note

If your image appears to be incorrectly inverted, missing tags are likely why. Pylinac has parameters to force the inversion of the image if the end result is wrong. Furthermore, some modules perform another inversion check at runtime. This is mostly historical but was done because some images were always expected to have a certain relationship and the tag logic above was not applied consistently (both new and old images were imcomplimented, causing differences). For those modules, tags were not used but a simple histogram analysis which expects the irradiated part of the image to be either centrally located or most of the image to NOT be irradiated. This is how pylinac historically worked around this issue and got reliable results across image eras. However with this new logic, there may be analysis differences for those images. It is more correct to follow the tags but for backwards compatibility the module-specific inversion checks remain.
